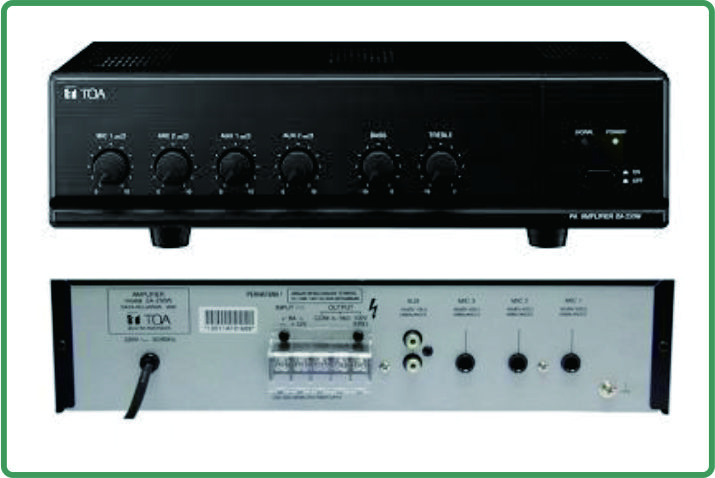

Amplifier TOA ZA-230 adalah amplifier berkapasitas 30 watt, digunakan untuk menunjang pengeras suara atau speaker dengan kapasitas maksimal 30 watt

Specifications Power Source240 V AC, 50 HzRated Output30 WPower Consumption34 W (AC operation at EN60065)Frequency Response50 Hz - 20 kHzDistortion1 % or less at 1 kHz, 1/3 rated powerInputMIC 1: -60 dB* (1.0 mV), 600 Ω, Unbalanced, Equivalent to 5-pin DIN Type MIC 2: -60 dB* (1.0 mV), 600 Ω, Unbalanced, Equivalent to phone jack Type AUX 1, 2: -20 dB* (100 mV), 10 kΩ, unbalanced, RCA pin jackOutputSpeaker out: Floating balanced High impedance: 330 Ω (100 V) Low impedance: 4 Ω (11 V)S/N Ratio60 dB or more (MIC 1, 2) 70 dB or more (AUX 1, 2)Tone ControlBass: -10 dB at 100 Hz Treble: -10 dB at 10 kHz MutingMIC 1 overrides other Mic input and AUX inputs with 0 - 30 dB attenuation, attenuation by switchIndicatorPower LED, Signal LEDFinishPanel: ABS resin, black Hair Line Case: Steel plate, black Dimensions350 (W) × 105 (H) × 240 (D) mm (13.78" × 4.13" × 9.45") Weight3.5 kg (7.72 lb)
